StraightPCF: Straight Point Cloud Filtering

Abstract

Point cloud filtering is a fundamental 3D vision task, which aims to remove noise while recovering the underlying clean surfaces. State-of-the-art methods remove noise by moving noisy points along stochastic trajectories to the clean surfaces, often requiring regularization within the training objective and/or post-processing to ensure fidelity.

We introduce StraightPCF, a new deep learning based method for point cloud filtering that works by moving noisy points along straight paths, reducing discretization errors while ensuring faster convergence to the clean surfaces. We model noisy patches as intermediate states between high-noise patch variants and their clean counterparts, and design a VelocityModule to infer a constant flow velocity from the former to the latter. This constant flow leads to straight filtering trajectories. In addition, we introduce a DistanceModule that scales the straight trajectory using an estimated distance scalar to attain convergence near the clean surface.

Our network is lightweight with only ~530K parameters — just 17% of IterativePFN (a recent state-of-the-art point cloud filtering network). Extensive experiments on both synthetic and real-world data show our method achieves state-of-the-art results and produces well-distributed filtered points without requiring any regularization.

Method

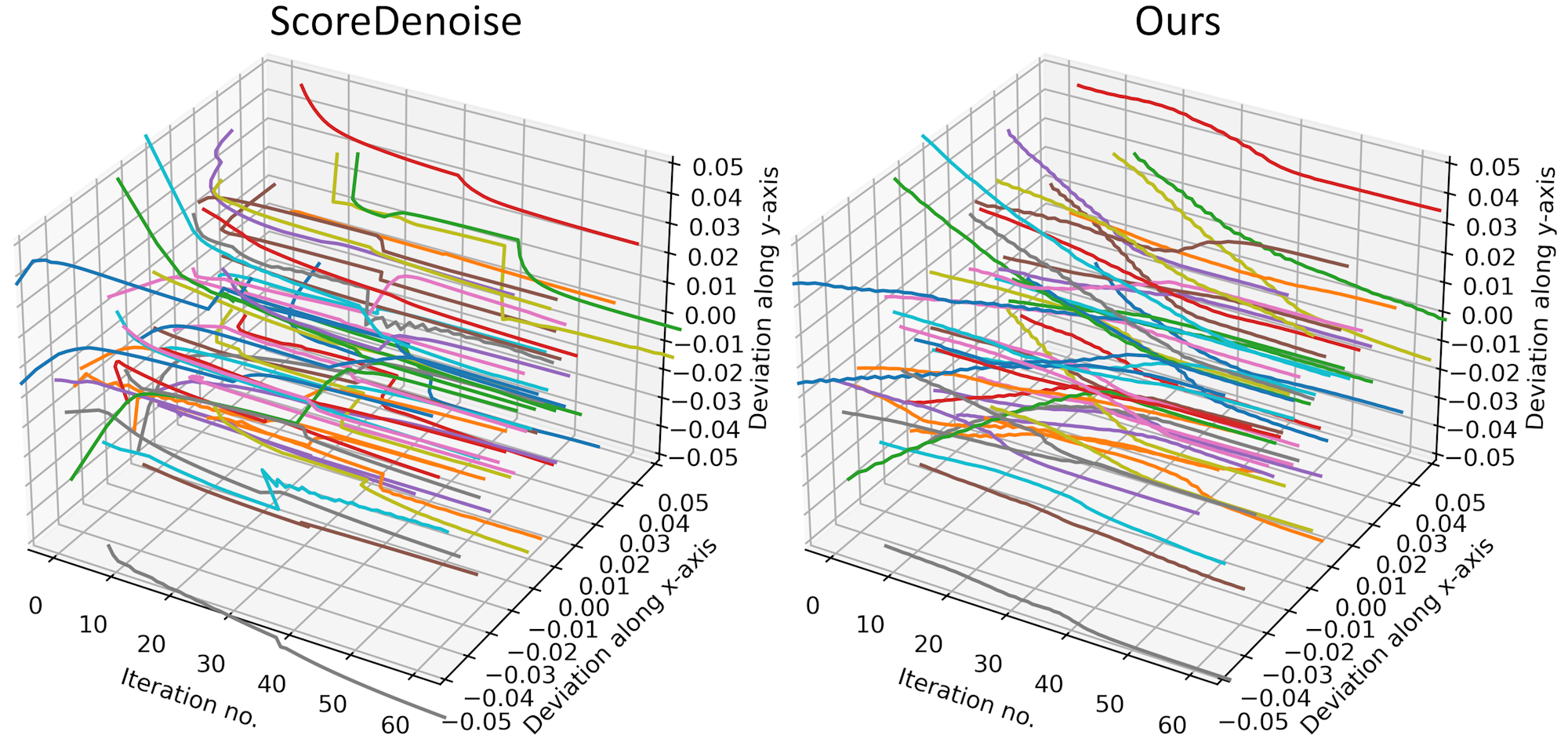

Filtering via Straight Flows

Prior methods (e.g., ScoreDenoise, IterativePFN) treat filtering as a reverse Markov process, resulting in stochastic filtering trajectories that are sensitive to step sizes and prone to clustering artifacts. We reformulate filtering as an optimal transport problem: we move noisy input patches from a high-noise distribution \(\pi_0\) to the clean surface distribution \(\pi_1\) along the shortest (straight) path.

Noisy patches \(\mathbf{X}_t\) are modelled as intermediate states of a linear interpolation between a high-noise variant \(\mathbf{X}_0\) and the clean patch \(\mathbf{X}_1\):

The flow is governed by an ODE \(d\mathbf{X}_t = \mathbf{v}(\mathbf{X}_t)\,dt\), where the velocity field \(\mathbf{v}\) is approximated by our VelocityModule — a DGCNN-based graph neural network.

Straighter Flows via VelocityModule Coupling

To further improve path straightness, we couple \(K\) VelocityModules together. Each module handles a segment of the trajectory from \(\mathbf{X}_t\) to \(\mathbf{X}_1\). Empirically, \(K=2\) provides the best balance between accuracy and efficiency. The coupled modules are fine-tuned with an objective that simultaneously encourages constant velocity inference and minimises deviation from the linear interpolation path.

DistanceModule

Constant flows may cause filtered points to overshoot the clean surface. The DistanceModule addresses this by estimating a distance scalar corresponding to the relative distance of the noisy patch from the clean surface. This scalar is used to scale the flow velocity, ensuring convergence near the surface. Crucially, StraightPCF is the first method to decompose point cloud filtering into a dual objective: inferring a vector field of flow velocities and a distance scalar.

Results

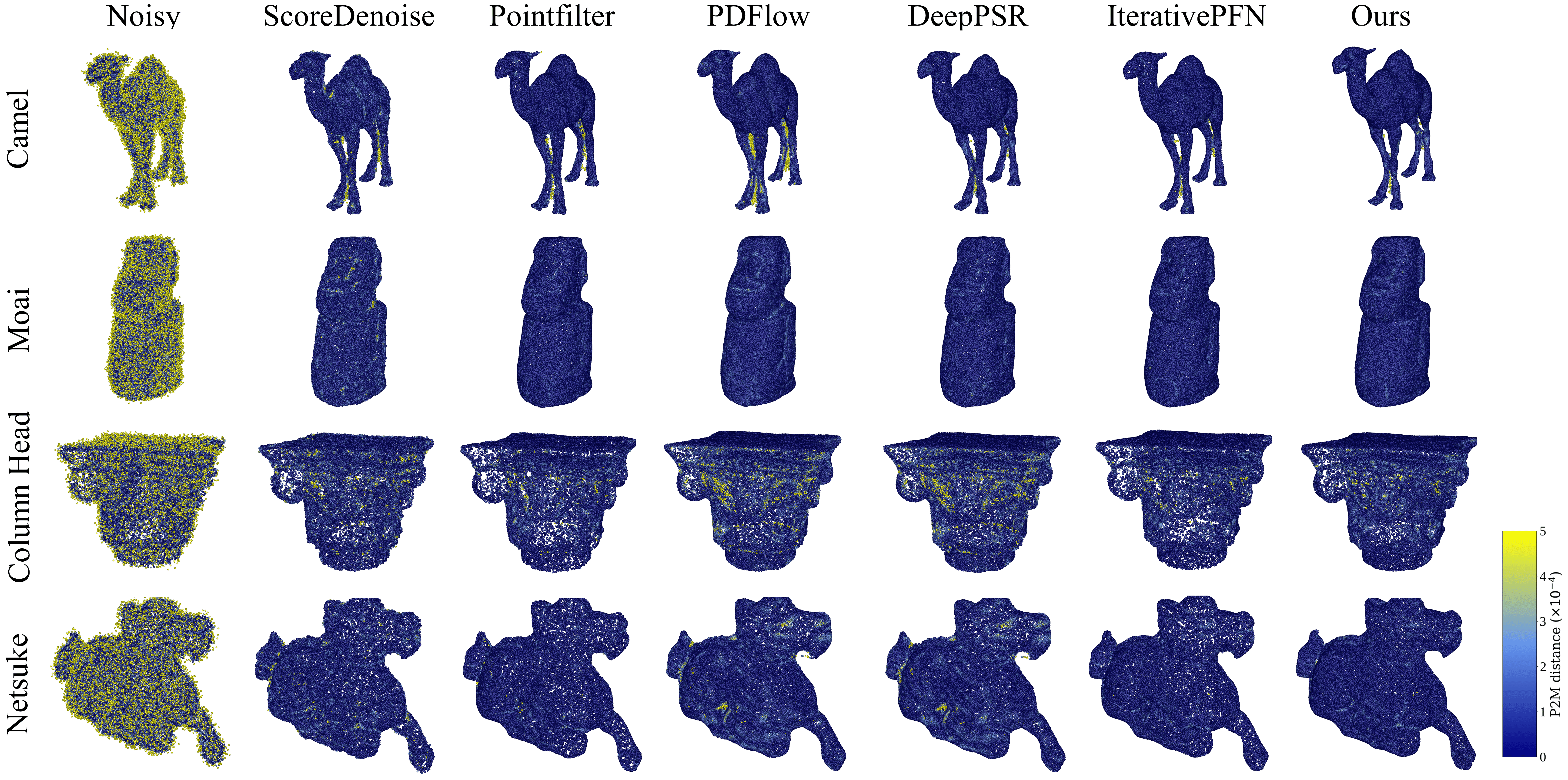

Quantitative Results on Synthetic Data

StraightPCF achieves state-of-the-art results on the PUNet and PCNet benchmarks across all noise scales (1%, 2%, 3%) and resolutions (10K sparse, 50K dense), as measured by Chamfer Distance (CD) and Point-to-Mesh distance (P2M).

On the PCNet dataset at 10K resolution and σ = 3% noise (unseen during training), our method achieves:

• 17.1% reduction in CD error vs. the previous best
• 24.1% reduction in P2M error vs. the previous best

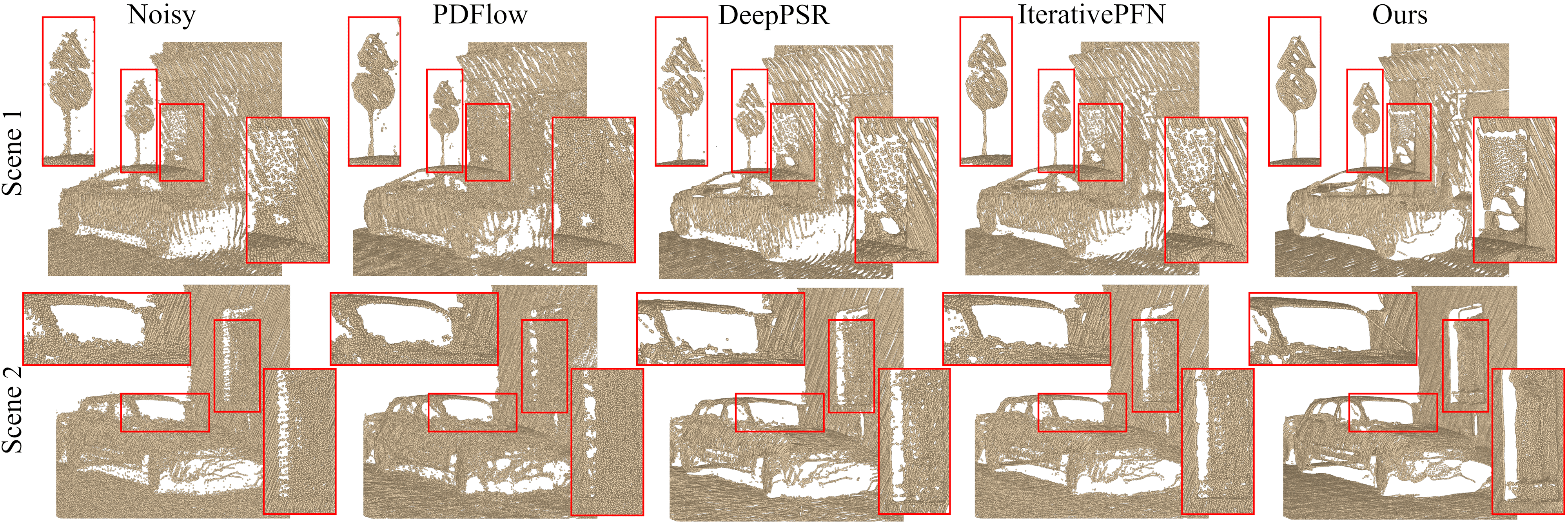

Quantitative Results on Real-World Scanned Data

On the Kinect v1 dataset (71 point clouds), StraightPCF achieves a 1.82% reduction in CD error compared to IterativePFN, while maintaining better point distributions without clustering artifacts.

Ablation Study

The ablation confirms that both VelocityModule coupling and the DistanceModule are critical to the full method’s performance. Values ×10⁴ at 10K resolution on PUNet.

BibTeX

@InProceedings{deSilvaEdirimuni_2024_CVPR,
  author = {de Silva Edirimuni, Dasith and Lu, Xuequan and Li, Gang and Wei, Lei and Robles-Kelly, Antonio and Li, Hongdong},
  title = {StraightPCF: Straight Point Cloud Filtering},
  booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  month = {June},
  year = {2024},
  pages = {20721--20730}
}
